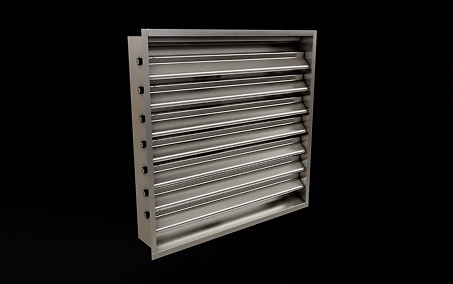

Adjustable Wall Louvers Offer a Perfect Fit for Healthy Airflow

Create safer, more comfortable interior environments, ward off mold and insulation damage — and keep condensation in check, too — with adjustable louvers from Metallic Products. Designed specifically for pre-engineered metal building wall panels, our wall louvers are a natural means of facilitating airflow for your metal buildings.

Self-mulling and self-flashing, our adjustable wall louvers fit into your metal building panels with no additional hardware required and can be mulled together to form a continuous run. Roll-formed blades and plated twin-link pivot brackets make it easy to adjust airflow based on output, environmental conditions and the like while keeping moisture and debris out.

The standard operator is the reinforced cast aluminum hand crank, but custom options are available. Adjustable louvers can be factory- or field-modified for chain operation or a motorized operator. The finished product features blade edge seals for maximum air sealing and 77% free area when opened to a full 90-degree angle. In addition, with a wide range of color and finish options available, your adjustable louver can blend seamlessly into your aesthetic.

Request a Quote Online

NOTE: Not all products and configurations are available via the online quoting website.

Adjustable Wall Louvers: Full Details & Specs

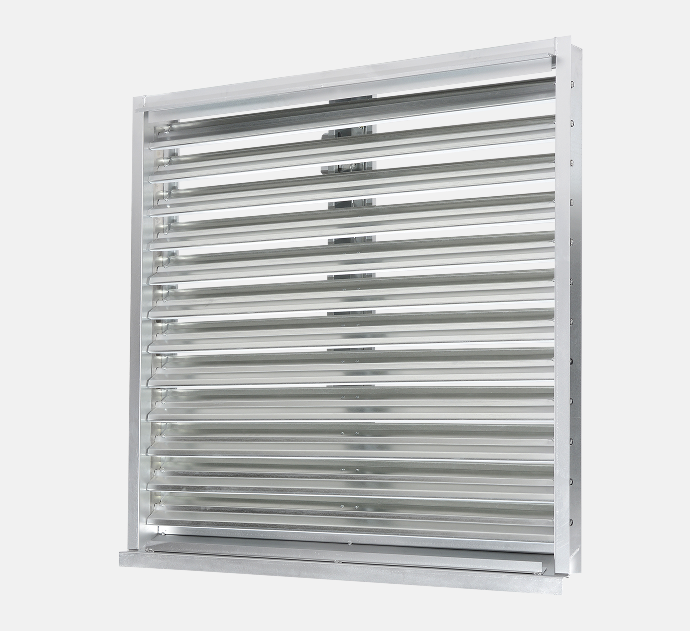

Galvanized Steel Adjustable Back Pivot Louver

Spec Sheet

Galvanized Steel Adjustable Center Pivot Louver

Spec Sheet

Aluminum Adjustable Stormproof Blade Louver

Spec Sheet

Frame
18-gauge galvanized steel

Blades
20-gauge roll-formed galvanized steel

Features
Louvers are self-mulling, self-flashing and self-framing. No other trim required. Louvers are chemically treated prior to painting. Louvers can be painted to match pre-selected colors by manufacturer. Standard paint is an electrostatically applied powder paint, 3 mm thick with an oven-baked finish. After the paint process is completed, an extruded weather stripping is applied to the edge of each blade to ensure virtual air tightness in the closed position.

Insect Screen
Aluminum screen cloth installed in an extruded removable, rewireable aluminum frame

Blade Operators
Twin-link brackets plated steel assembled with double brass pivot and set screw

Connecting Rod
¼” zinc plated steel

Operator
Standard operator is by a reinforced cast aluminum hand crank. Optional: Chain operator of #35 sash chain with plastic-coated chain pull handle

NOTE: Please specify panel type when ordering. The frame has a recessed head to accept the wall panel and side flanges fit specified panel profile on 1’ modules. The sill is tapered to provide drainage and exclude moisture. Flat flange louvers are also available for installation into framed openings.

Enhanced Engineering
Florida approved options available. For more information, visit our Florida product approval page.

Additional Notes
All welds are watertight and made from non-corroding siliconized bronze wire and finished after fabrication.

Additional materials available include stainless steel, aluminum and Galvalume. All louvers are shipped with an 18 x 16 aluminum insect screen mounted in a removable, rewireable frame. Hardware cloth is also available. Louvers are shipped individually in heavy duty cardboard cartons.
