Corner Canopies

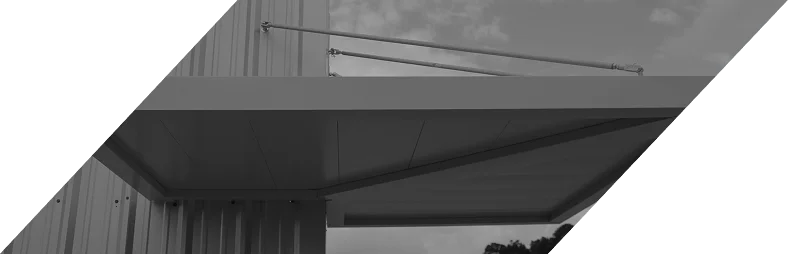

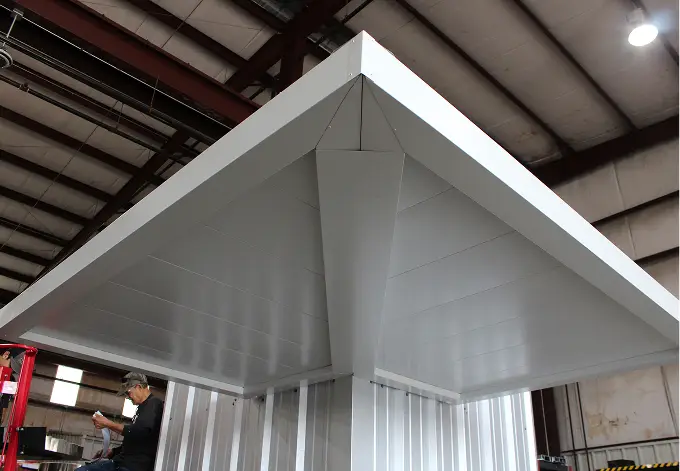

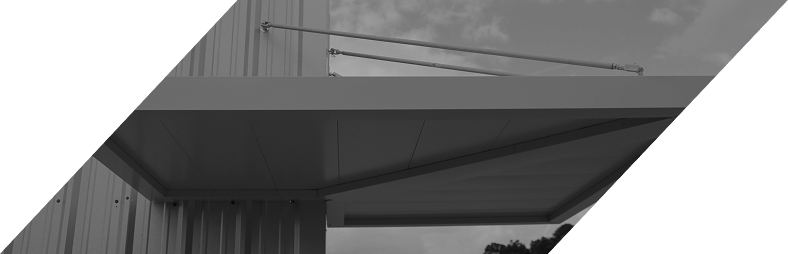

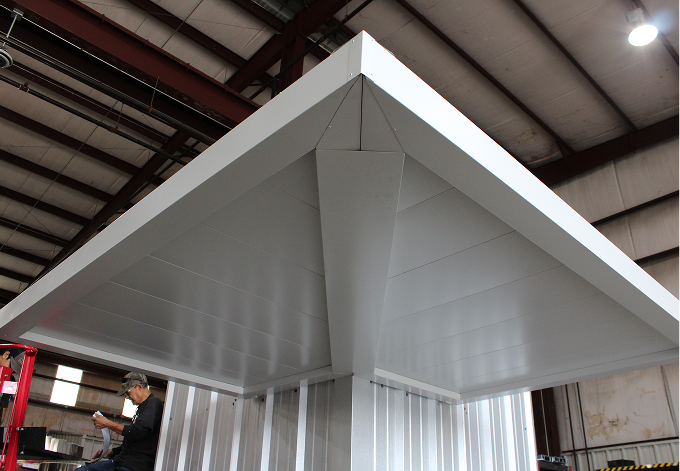

Give Your Steel Building the Edge with a Corner Canopy

Metallic Products’ corner canopies are an easy, attractive way to protect your building’s high-traffic areas, and to look out for your budget, too. Designed to wrap sleekly around your structure’s exterior, they shield visitors from the sun, rain and snow while also saving you money.

Corner canopies strategically placed above cooling units help extend their lifespan by protecting your equipment from damage. In addition, by limiting the amount of solar radiation entering through windows and doors, they help lower energy bills while reducing the amount of stress your HVAC systems experience.

With little to no ongoing maintenance required, your corner canopies are designed to serve your steel building for years to come. Meanwhile, with a wide range of sizes, colors and finishes — and the option to incorporate lighting, too — they add visual appeal while creating safer surroundings.

Interested in learning about our additional canopy options? Metallic Products offers traditional personnel door canopies, lighted canopies and ice shield canopy options, too.

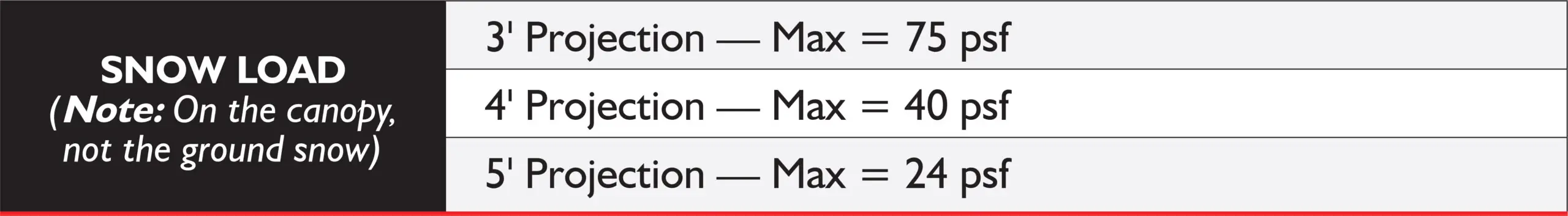

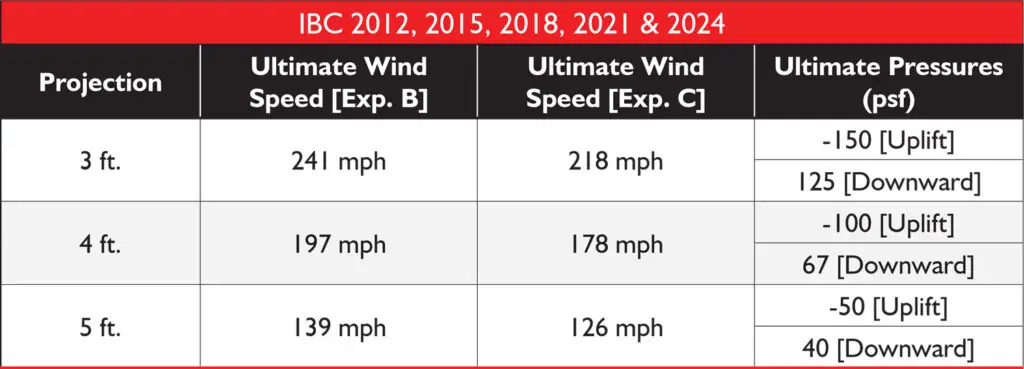

Corner Canopies: Full Details & Specs

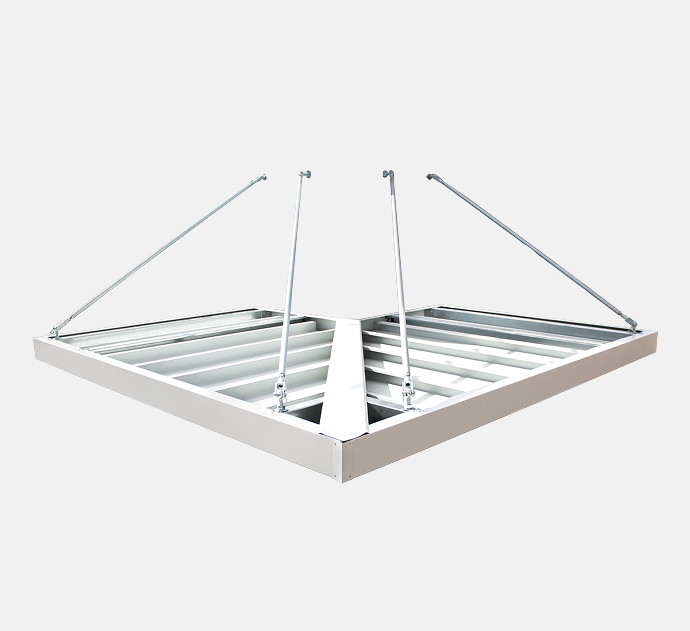

Construction

  • Economical and attractive overhead protection from the elements
  • 24-gauge flat soffit and integral gutter with rear-mounted drains
  • 16-gauge galvanized internal frame for 3’ and 4′ projections, and 14-gauge galvanized internal frame for 5′ projection
  • 5/8″ diameter rod end 4140 hot rolled annealed (HRA) [F.y = 125 ksi]
  • 16-gauge telescoping support channels mount behind wall panel between girts, mounting clips and fasteners included
  • 3/4″ galvanized pipe hangers with adjustable rod ends

Finishes

  • Galvalume steel
  • Silicone polyester, Kynar® and powder coated finish options available in a wide range of colors
  • Custom color matching
  • Single color or two-tone (contrasting gutter/fascia and soffit)

Options

  • Masonry mount (anchors by others)
  • Downspouts
  • Front-mounted drains
  • Light Kit (see Lighted Personnel Door Canopies)

Install Instructions

Metal and masonry panel install information available for download.
