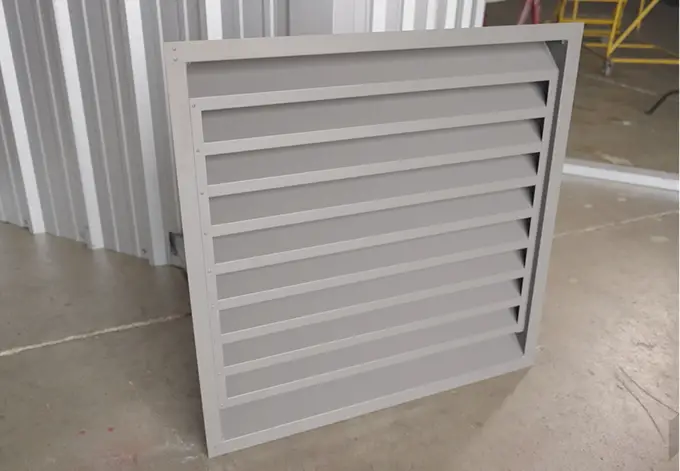

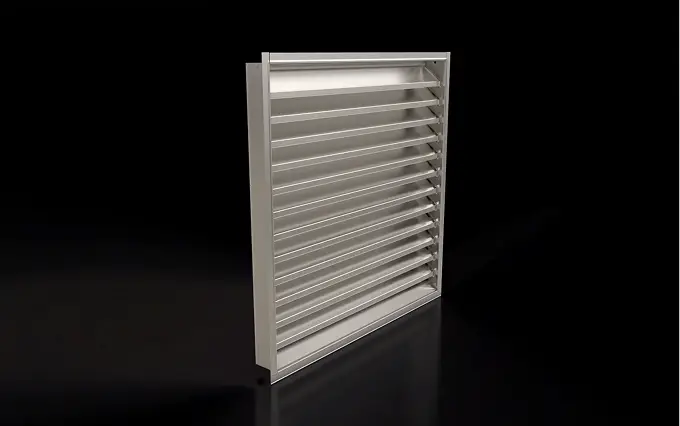

Metallic Products’ fixed louvers are a virtually maintenance-free way to help your metal buildings breathe. Designed for your pre-engineered steel building wall panels, they allow fresh air to flow indoors while keeping moisture, snow, ice, insects and other debris safely out. The end result? Cooler interiors, regulated humidity levels and healthier, more comfortable spaces. A weather-resistant build allows your fixed louver to stand up against the elements, while its 45-degree, roll-formed blades, 4” depth and riveted frame encourage security. Our fixed louvers feature 55% free area and come in a wide range of sizes, colors and finishes. And because their blades remain firmly in place, they require little to no ongoing maintenance.

For those with steel buildings in areas regularly impacted by hurricanes or high wind scenarios, we also offer Florida approved fixed louvers. These enhanced versions of our product are engineered to meet the Florida Building Commission's stringent building codes and undergo extensive testing, inspection and ongoing evaluation to ensure they offer the utmost protection against whatever Mother Nature has in store.

Interested in additional louver options? We offer adjustable and architectural louvers, too!

galvanized-steel-fixed-louver

Galvanized Steel Fixed Louver


galvanized-steel-fixed-stormproof-blade-louver

Galvanized Steel Fixed Stormproof Blade Louver


galvanized-steel-fixed-stormproof-blade-louver

Aluminum Fixed Stormproof Blade Louver


About Our Stationary Louvers


Frame

18-gauge galvanized steel


Blades

20-gauge roll-formed galvanized steel


Features

Louvers are self-mulling, self-flashing and self-framing. No other trim required. Louvers are chemically treated before painting. Louvers can be painted to match pre-selected colors by manufacturer. Standard paint is an electrostatically-applied powder paint, 3 mm thick with an oven-baked finish.


Insect Screen

18 x 16 aluminum mesh installed in an extruded removable, rewireable aluminum frame


Blade Operators

Twin link brackets plated steel assembled with double brass pivot and set screw


Connecting Rod

¼” zinc plated steel


Operator

Standard operator is by a reinforced cast aluminum hand crank. Optional: Chain operator of #35 sash chain, with plastic-coated chain pull handle.

NOTE: Please specify panel type when ordering. Frame has a recessed head to accept the wall panel and side flanges fit specified panel profile on 1’ modules. Sill is tapered to provide drainage and exclude moisture. Flat flange louvers are also available for installation into framed openings.

Additional Notes

All welds are watertight and made from non-corroding siliconized bronze wire and finished after fabrication.

Additional materials available include stainless steel, aluminum and Galvalume. All louvers are shipped with an 18 x 16 aluminum insect screen mounted in a removable, rewireable frame. Hardware cloth is also available. Louvers are shipped individually in heavy-duty cardboard cartons.
