Wall-Mount Fan Shutters, Guards & Hoods

Accessories To Help Your Industrial Wall Fans Serve You Better

Complement your industrial wall fans with a selection of fan shutters, fan guards and weather hoods from Metallic Products. Designed to stand up against the elements while integrating seamlessly with your metal building’s power ventilation systems, our wall-mount fan shutters and accessories help maximize airflow and create healthier, more comfortable conditions.

A quality build helps keep excess moisture, debris and insects out. Meanwhile, with a range of color and finish options, your industrial wall fan accessories pull double duty — adding visual appeal to your steel buildings while supporting your fan in its work. With little to no ongoing maintenance required, these metal building accessories are good for the budget, as well. Curious about our other power vent options? Metallic Products offers roof-mount and wall-mount industrial fans, too.

Quote Request Form

Wall-Mount Fan Shutters, Guards & Hoods: Full Details & Specs

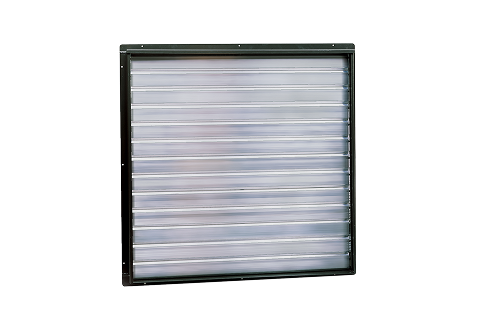

Silver fan shutters for metal building

Fan Shutters

Spec Sheet

Standard Features

  • Shutter frames are heavy-gauge steel with rigidly welded corners and finished with an optional tough powder coated finish
  • Aluminum shutter blades are attached with heavy-duty nylon fasteners
  • Automatic open/close operation as fan is turned on/off
  • Interlocking blades for maximum weather seal
  • Double-panel units constructed with rigid “T” section center member
  • Open depth of shutters is 4″

Options

  • Manual pull chain and chain latch
  • Motor operator, 115/230 volts (relieves starting load on fan motor)
  • Fully electrostatic powder coated finish with custom color available upon request
Fan guard for metal building accessories

Fan Guards

Spec Sheet

Standard Features

  • IG” and “VIG” series industrial fan guards should be used on all fans mounted less than 7’ above the floor to meet OSHA requirements. Grill features a black powder coated finish.
  • The “VIG” guard for “VI” series fans consists of the grill only, which attaches to the fan housing on the intake side.
  • The “IG” guard for “V” series fans is complete with 14″ deep galvanized housing and grill. It mounts on the intake side of the fan and is shipped unassembled.
Weather hood for steel building

Weather Hoods

Spec Sheet

Standard Features

  • Heavy-duty galvanized construction
  • Galvanized angle frames
  • Flange frame for securing to building structure
  • Standard sizes to accommodate 24″, 30″, 36″, 42″ and 48″ fans
  • ½” bird screen mesh at opening
  • Assembled and crated

Options

  • Insect screen
  • Filter frames
  • Electrostatic powder coated finish (2 mm)
  • Shipped “KD” (knockdown) for field assembly
  • Also available in aluminum and Galvalume finishes
  • Custom sizes available
