continuous ridge vents





NOTE: To submit quote request electronically, download, complete and save the form to attach in an email.

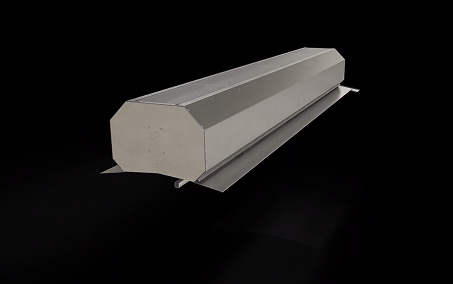

Ensure optimum airflow and premium comfort inside your metal buildings with Metallic Products continuous ridge vents. Our continuous ridge ventilators easily move fresh air through buildings of all sizes, including heavy industrial operations. Meanwhile, they remove hot, stale air — and air contaminated by manufacturing or production processes. And the benefits last year-round. During warm summer months, our gravity ridge ventilators release heat naturally. When winter temperatures strike, proper ventilation helps to control condensation and other moisture issues, including rust, deteriorated insulation and product damage.

Your continuous ridge vent is available in a wide range of throat sizes — and with or without dampers to control airflow. Pull chains are the standard means for controlling dampers. Multiple damper operations are available for two or more units. Standard ridge ventilators are shipped with a 1:12 end cap and can be field modified to accommodate up to 6:12 roof pitch. Ventilators can be custom ordered to accommodate roof pitches greater than 6:12.

About Our Continuous Ridge Ventilators


Standard Sizes

9" throat and 12" throat available in 10' sections. Low profile design can be used for a single unit or continuous run installation with no disassembly.

Other throat sizes available include 4", 18", 24", 30" and 48" options. For custom lengths or throat sizes, please contact us.

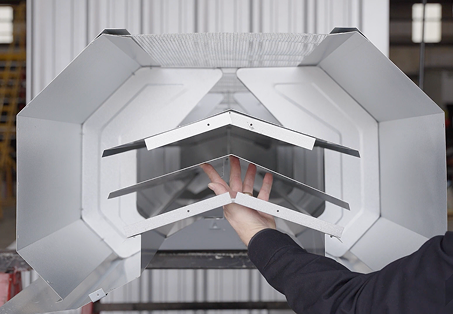

Internal Dampers

Easy-moving damper open to any degree from fully open to completely closed.


Design

Aerodynamically proportioned to exclude weather. Protects air passaged and full outlet area.


Bird Screen

Vents are fully protected by 4 x 4 bird screen mesh galvanized hardware cloth.


Construction

Durable 26-gauge exterior, combined with internal components of 24, 20 and 18-gauge die formed sheet metal and machined parts for a long service life.

Metallic Products also constructs welded, large throat vents available in multiple sizes. See page 3 of Continuous Ridge Vent spec sheet for more information.


Finish

Galvalume finish is standard, but other colors — including Kynar — are available upon request.


Drainage Area

Both wind bands feature a continuous slot on the bottom for easy drainage.



NOTE: Please specify flat or die formed skirts, roof pitch, damper operation and color when ordering.
